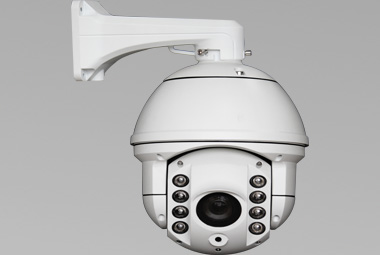

SOAR918-AHD
|
|
Camera
|
|
Image Sensor
|
1/3" APTINA CMOS
|
|
Video Standard
|
PAL/NTSC
|
|
FPS
|
50Hz:25fps(1280*720)
60Hz:30fps(1280*720)
|
|
Optical Zoom
|
18X, 4.7 to 84.6mm（ F1.6 to F2.7）
|
|
Min.Focus distance
|
100mm ~1000mm (Close focus ~ Far focus)
|
|
Min. Illumination
|
Color: 0.05Lux@F1.6, B/W: 0.005Lux@F1.6
|
|
Electronic Shutter
|
1/1 ~ 1/30000s
|
|
Day/Night
|
Support IR-CUT
|
|
Scan System
|
Row by row
|
|
Synchronous
|
Internal synchronous
|
|
S/N Ratio
|
>50dB（ AGC Off， Weight ON）
|
|
Iris Control
|
Auto
|
|
Backlight
compensation
|
Open/Close
|
|
White Balance
|
Auto
|
|
Pan&Tilt
|
|
Pan Range
|
360°endless
|
|
Pan Speed
|
0.5°~80°
|
|
Tilt Range
|
-30°~40°
|
|
Tilt Speed
|
0.5°~60°
|
|
Number of Preset
|
255
|
|
Patrol
|
6 patrols, up to 18 presets per patrol
|
|
Pattern
|
4 , with the total recording time not less than 10 minutes
|
|
Infrared
|
|
IR Distance
|
100m
|
|
IR Angle
|
Adjustable by zoom
|
|
General
|
|
Power Supply
|
AC24V/3A,50Hz
|
|
Power consumption
|
30 W
|
|
Working
Environment
|
-40 °C~65°C
|
|
Weight
|
3.5 kg
|
|

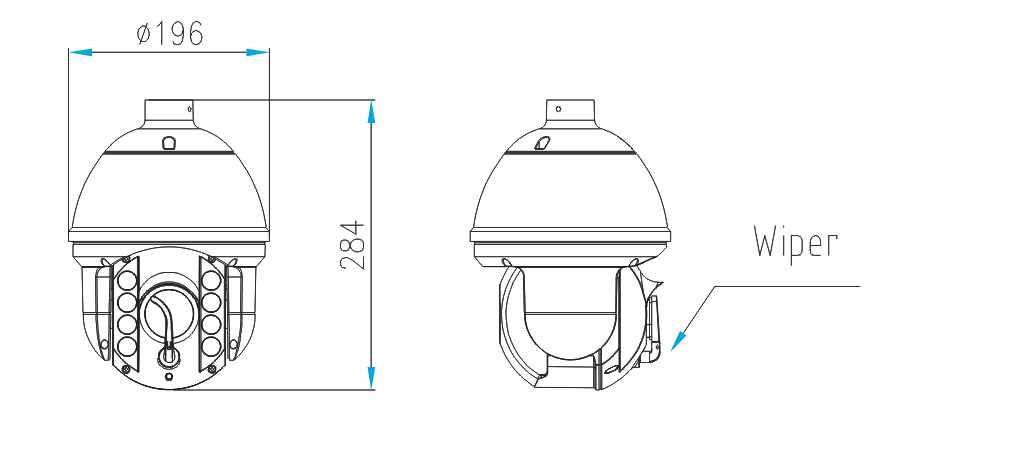

Dimension
|
Φ196(mm)×284(mm)
|
|
Ingress Protection
|
IP 66
|
|

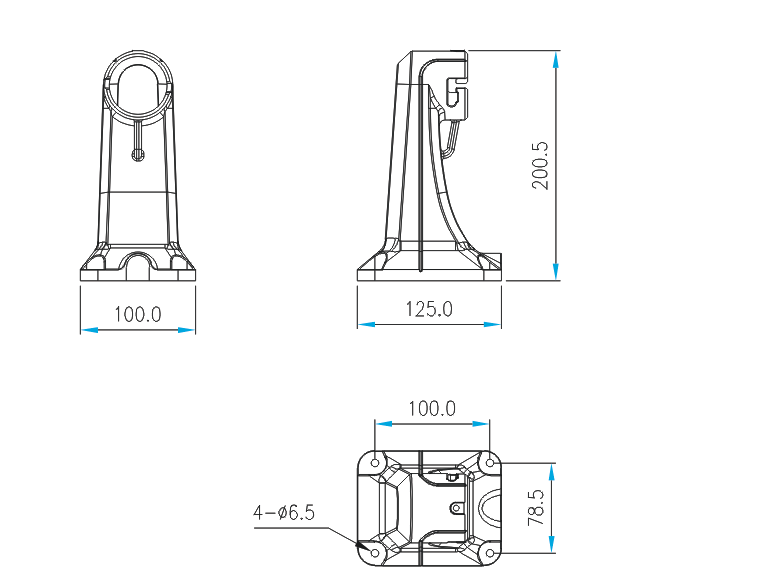

Mount Option:
|
Top mounting; Wall mounting
|
|
Wiper
|
Optional
|
